AADHI SOLAR HOME UPS / INVERTER

AADHI – The leading Power Back-up Solution provider in India, with its consistent focus on technological innovation, has attained heights unheard of, in the largely unorganized industry. Having a clear technological edge, creating new benchmarks and upgrading standards for the industry, comes naturally to AADHI . Today, AADHI Systems is the established leader in product innovation, design sensibility and sales distribution network. AADHI Systems is an Indian power and Energy Storage Company with a global presence, delivering high quality Solar pump, Solar agriculture pump, solar deep submersible pump, Solar surface pumps, solar fountain pumps, solar garden pumps, solar pump for home.

Our Work Process

We are the energy saving oriented people who utilize solar energy & being used by innovating Into various solar products.

‹ ›

Features

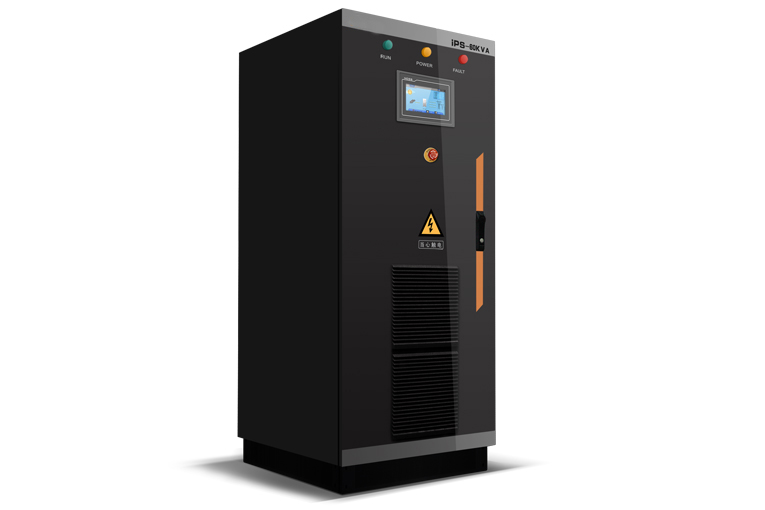

iPS series three-phase off-grid inverter 80kVA~160kVA

◆ Max. efficiency up to 95%
◆ Isolated output transformer, durable load impact
◆ Pure sine wave output, suitable for all sorts of electrical appliances
◆ Excellent overload capacity
◆ Complete protections e.g. Input and output over voltage, over temperature protection, overload protection, short circuit protection, etc.
◆ LCD display + LED status indicator
◆ Smart fan speed control and trouble shooting function
◆ RS485, dry contact communication to realize remote monitoring

Description

◆ iPS series off-grid inverter is particularly designed for off-grid power system with high efficiency up to 95%. The excellent overload capacity and complete protection are suitable for all sorts of electrical appliances. The inverter can be used in harsh environments e.g. wide temperature range, high altitude, etc. This series can be applied for solar lighting, remote communication base, high way monitoring system, custom system of pastoral areas and less developed areas, etc.

Model	iPS 80K3	iPS 100K3	iPS 120K3	iPS 160K3
Input
Rated voltage	384VDC	384VDC	384VDC	384VDC
Rated current	175	218	270	350
Voltage range	345VDC-480DC
Output
Rated power	64kW/80kVA	80kW/100kVA	96kW/120kVA	128kW/160kVA
Output voltage	3/N/PE, 380/400/415V
Output wave	Pure sine ware
Output frequency	50Hz±0.5%
Rated current	121 A	152 A	182 A	242 A
Output voltage total harmonic distortion	THDU<3% （Full load, linear load）
	THDU<5% (Full load, nonlinear load)
Output voltage regulation	<5%（Load 0～100%）
Power factor	0.8
Overload capacity	105%-110%, 10min; 110%-125%, 1min; 150%,10S
Crest factor	3
General parameters
Max. frequency	95%
Operating temperature range	-10℃～45℃（Derated above 45℃）
Relative humidity in operation	0～95% (non-condensing)
Ingress protection rating	IP20（Indoor）
Max. operating altitude	5000m (>2000m derating)
Display	LCD+LED
Cooling method	High-velocity fan cooling
Protection	DC&AC over/under voltage, AC over load, AC short circuit, over temperature, etc
EMC	EN 61000-4, EN55022(Class B), IEC60950
Dimension(DWH )	8007001700mm		9008001800mm
Weight	750kg	800kg	950kg	1100kg

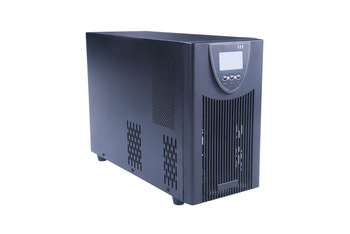

iXCEED Series Solar Inverter 1-5KVA

◆ Modular design, integrates solar controller, ac charger and inverter;

◆ MPPT charging control, making the largest use of solar module;

◆ Smart battery management;

◆ Pure sine wave inverter outputØWide range of input voltage up to 150V;

◆ High-frequency isolated transformer, small in size, running safe and stable;

◆ Superior strong carrying load capacity;

◆ High power density design offer high efficiency output;

◆ Automatic restart function as mains supply restore;

◆ Wall mounted design, stylish appearance, simple install and easy operate;

◆ Overload, short circuit and many other important protection;

◆ LCD display + LED indicator;

Description

iXCEED series high frequency off-grid inverter is a high tech multifunctional inverter which integrates three functional modules: MPPT solar controller, AC charger and inverter. it has a small size, simple operation, easy maintenance, etc., which is a very cost-effective and comprehensive off-grid solar inverter. And widely used in remote areas where is without effective regional power supply, or the power supply is not stable, such as agriculture, animal husbandry, urban residents electricity, to solve the problem of their production and living electric power using.
